LN₂ LIQUID DEWARS

Lab-Grade Liquid Nitrogen Storage Dewars

The LD Series liquid nitrogen dewars are designed for safe storage and dispensing of small to medium quantities of liquid nitrogen in laboratory and industrial settings. Combining rugged aluminium construction with advanced vacuum insulation, these dewars provide efficient thermal performance and reliable operation. With capacities from 4L to 50L and hold times up to 119 days, the LD Series offers versatile solutions for cryogenic cooling, sample immersion, cold trap applications, and liquid nitrogen dispensing.

LN₂ LIQUID DEWARS DATASHEET

Wessington Cryogenics | LN₂ LIQUID DEWARS 0

Features

Safe storage and dispensing of liquid nitrogen
Rugged ribbed high-strength aluminium body
Advanced vacuum insulation for efficient thermal design
Static hold times up to 119 days
Compact footprint for laboratory benchtops

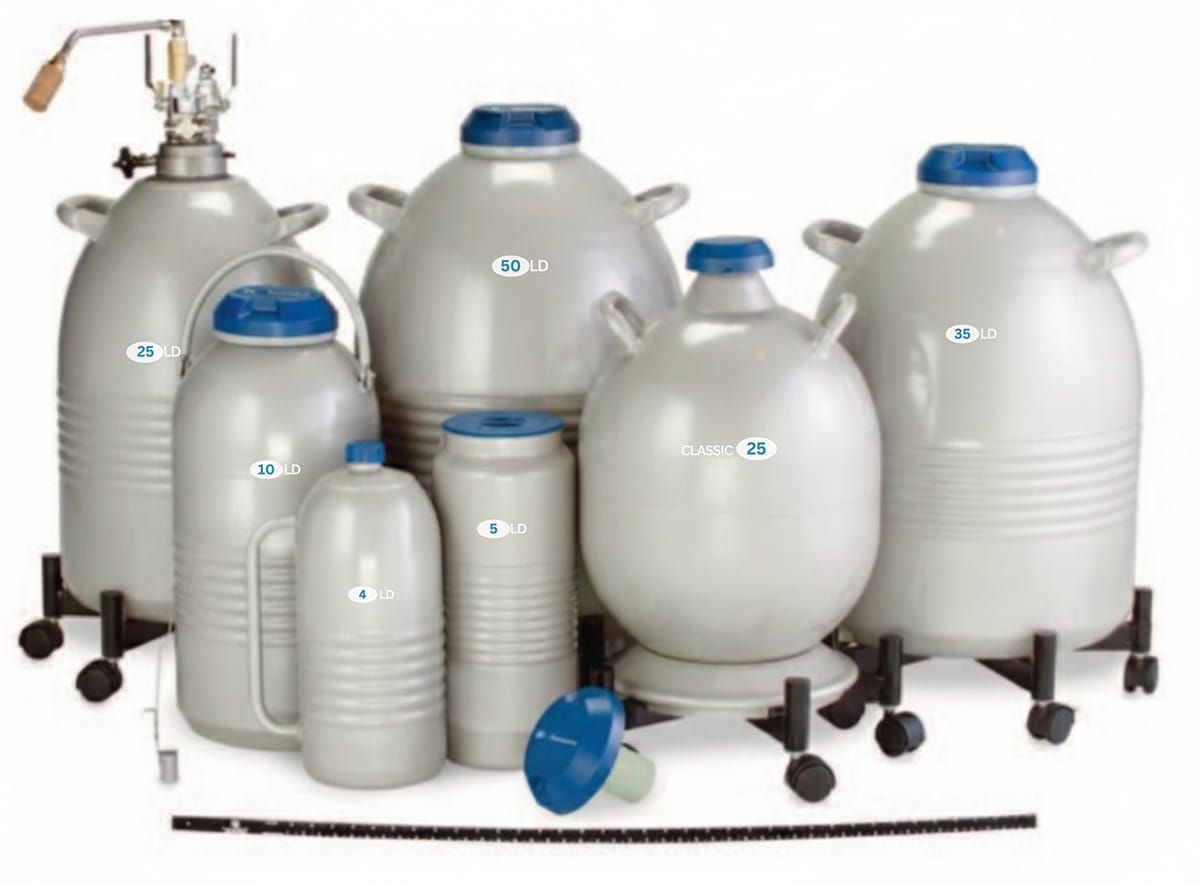

Available in 7 models: 4LD, 5LD, 10LD, 25LD, CLASSIC-25, 35LD, 50LD
Capacity range: 4L to 50L
Compatible with Liquid Withdrawal Device (25LD, 35LD, 50LD)
Low evaporation rates for cost efficiency
Wide necktube options for easy filling
Multiple applications: laboratory, industrial, research
Durable construction for long service life

Enquire about this product

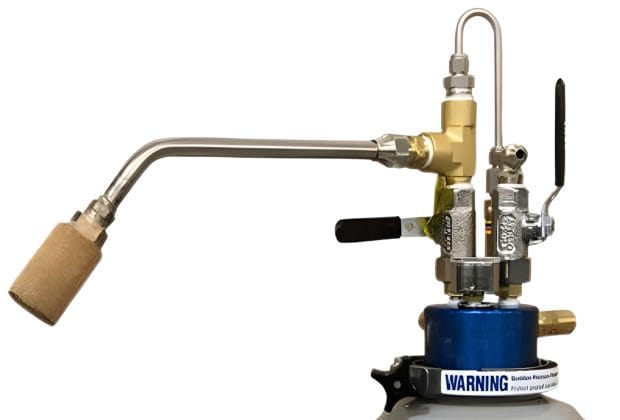

Accessory - Liquid withdrawal device for 25, 35 and 50 LD/LDB Dewars

The Liquid Withdrawal Device (LWD) provides convenient pressure transfers of liquid nitrogen from 25, 35 and 50 LD/LDB Dewars. The device clamps directly to the special neck flange under the plastic trim collar on the neck of these containers.

Flow rates up to 8 litres per minutes are possible at operating pressures up to 6.5 psig (0.45 bar/45 kPa). Liquid can be dispensed directly from the LWD via the spout provided or through a standard cryogenic hose connected to the liquid outlet.

Liquid Withdrawal Device Datasheet
